序號

標準

內容

1

IEC 61851-1

Electric vehicle conductive charging system-Part 1:General requirements
電動汽車導電充電系統-第1部分：一般要求

2

IEC 61851-23

Electric vehicle conductive charging system-Part 23:DC electric vehicle charging station
電動汽車導電充電系統-第23部分：直流電動汽車充電站

3

IEC 61851-24

Part 24:Digital communication between a d.c. EV charging station and an electric vehicle for control of d.c. charging
第24部分:直流電之間的數字通信。電動汽車充電站和用于控制直流充電的電動汽車

4

IEC 62196-1

Plugs,socket-outlets,vehicle connectors and vehicle inlets-Conductive charging of electric vehicles-Part 1:General requirements
第1部分：一般要求

5

IEC 62196-3

Part 3: Dimensional compatibility and interchangeability requirements for d.c.and a.c./d.c. pin and contact-tube vehicle couplers
第3部分:用于d.c.及a.c./d.c.引腳及導電管汽車耦合器的尺寸兼容性及互換性要求

6

ISO 15118-1
ISO 15118-2
ISO 15118-3

Road vehicles一Vehicle to grid communication interface
Part 1: General information and use-case definition
Part 2: Network and application protocol requirements
Part 3: Physical and data link layer requirements

7

DIN-70121

Electromobility-Digital communication between a d.c. EV charging station and an electric vehicle for control of d.c. charging in the Combined Charging System

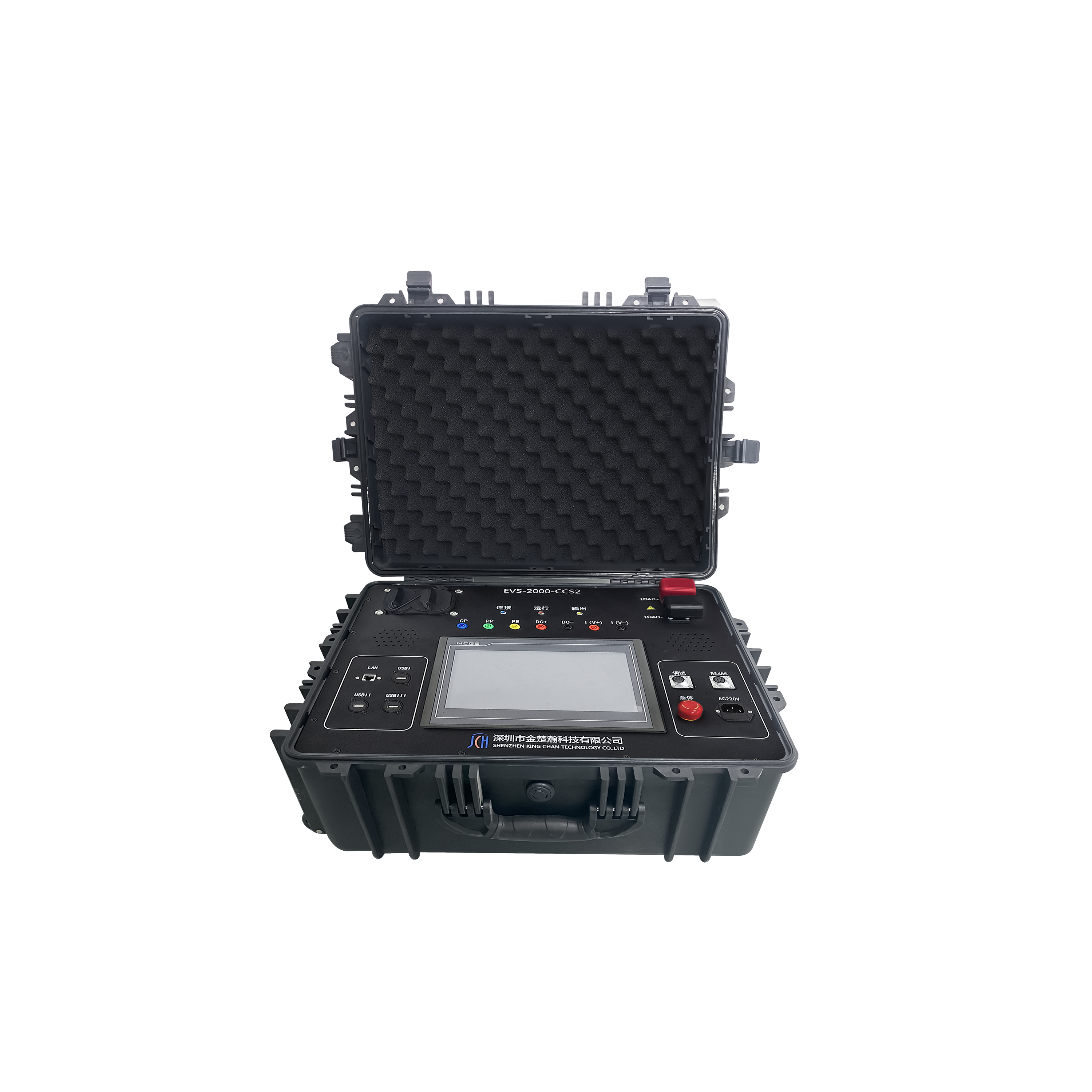

EVS-2000-CCS2便攜式直流充電樁測試儀

被測輸入

單槍?zhuān)?/span>200A

工作電源

AC 85~260VAC;

最大電壓

0-1000V

最大電流

0~200A

工作環境溫度

-20℃～+50℃

存儲溫度

-30℃～+70℃

相對濕度

5％～90％

IP防護等級

IP65

內部通信方式

PLC載波通信

內部通信規約

HOME_PLUG GREEN PHY

外部通信接口

RS232

重量

14kg

尺寸

440*600*222mm（寬深高）

箱體顏色

黑

顯示方式

10寸觸摸屏
